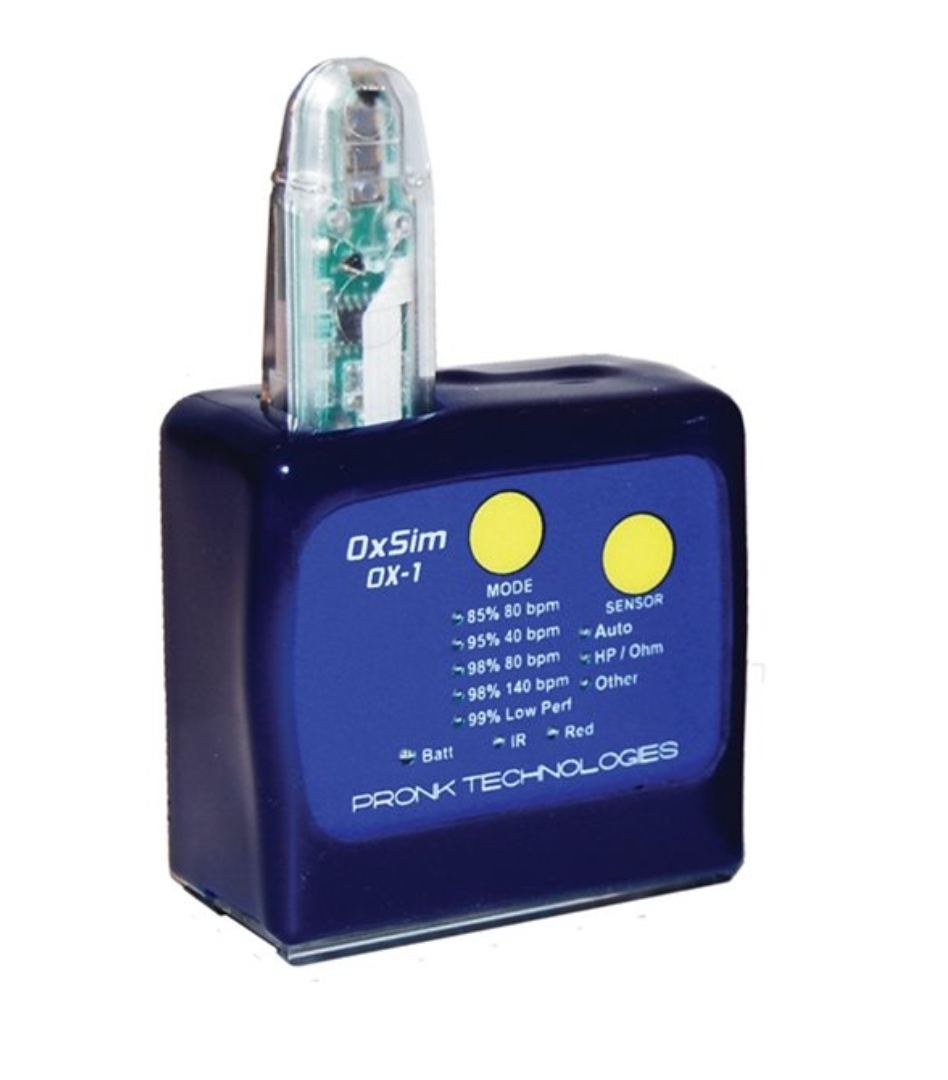

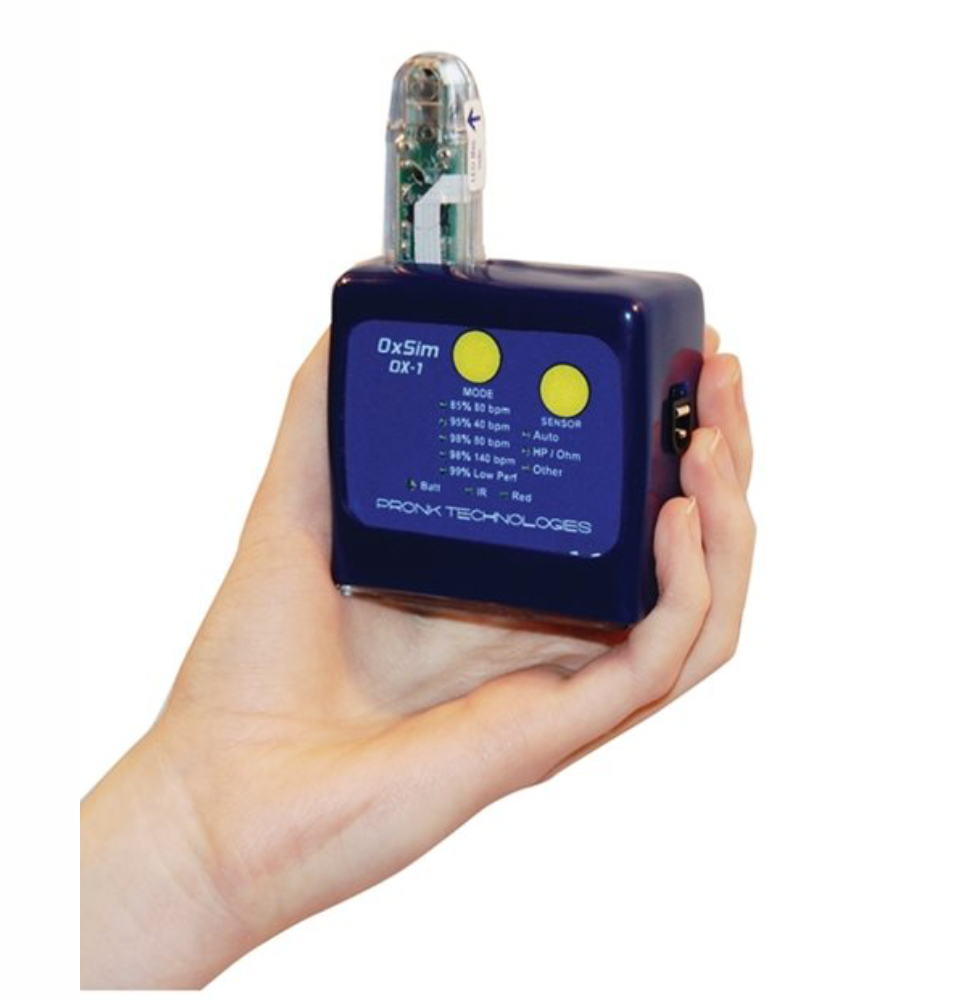

OX-1 OxSim® Optical SpO2 Pulse Oximeter Simulator

• SpO2 Simulations:
• Mode 1: Saturation: 85%, Heart Rate: 80 bpm, Perfusion Index: approx. 2.0
• Mode 2: Saturation: 95%, Heart Rate: 40 bpm, Perfusion Index: approx. 2.0
• Mode 3: Saturation: 98%, Heart Rate: 80 bpm, Perfusion Index: approx. 2.0
• Mode 4: Saturation: 98%, Heart Rate: 140 bpm, Perfusion Index: approx. 2.0
• Mode 5: Saturation: 99%, Heart Rate: 80 bpm, Perfusion Index: approx. 0.2
• Size: 2-1/2″ x 2-1/2″ x 1-1/4″ (6.4 x 6.4 x 3.2 cm), excluding finger section
• Weight: Only 5 oz. (0.14 kg, excluding battery)
• Simple operation: Just two buttons
• Convenient: No adapter cables to purchase or carry
• Economical: ‘Finger’ is fixed and permanent. No parts to carry or replace annually
• Rugged: Polycarbonate housing. Drop tested 65 time from a height of 3 feet (1m) to a hard surface with no failures!
• Power: 6VDC Adapter or AA battery. Compatible with the Battery Boost — run OxSim & SimCube NIBP Simulator simultaneously.
• Battery Life: Minimum 8 hours. 60 days in sleep mode (unit sleeps after 10 min. with no probe connection)
• Warranty: Four-Year Limited Warranty
• Package Contents:

(1) OxSim® Optical SpO2 Pulse Oximeter Tester

(1) Power Supply (6VDC)

(1) AA battery

(1) Certificate of Calibration

(1) Carrying Case

• Optional Features: Serial Communications port provides user control of OxSim for expanded simulation settings.
• Saturation Range: 10-100%
• Pulse Rate Range: 10-250 BPM
• Perfusion Index Range: 0.1 – 2 .0 PI
